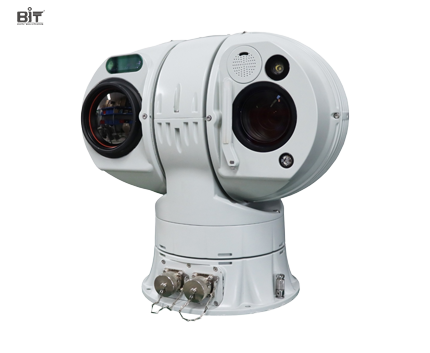

видеокамера PTZ с двойным зрением

Detection

Vehicle: 6,100m/Human: 1,500m

Identification

Vehicle: 1,600m/Human: 700m

Thermal camera

VOx uncooled detector, 384*288 (640*512 optional)

7.5um-14um spectral response, 50mk NETD

Thermal lens

25mm～75mm, 3X zoom

Motorized zoom and auto focus

Fov（H）

13°～4.3°

Image process

2X digital zoom; Image processing; AGC; 10 pseudo color; SDE image enhancement

Visible sensor

1/2.8'' CMOS

0.01 lux color to B/W

2.1MP , 1920X1080

Automatic ICR switch

H.265/H.264/MPEG4/MIPEG

32Kbps~16Mbps,60Hz30 FPS

Visible lens

8mm～320mm, 40X zoom

F1.6～F5.0

Fov（H）65°～2.3°

Electric zoom and auto focus

1s fast autofocus

Fog Penetration

Support

Housing

1. Material: High strength aluminum alloy housing, waterproof seal, avoid the growth of mold and moisture

2.  Structure: Integrated double-window design

3.  Surface coating: PTA three-resistance coating, corrosion resistance

4.  Built-in thermostat, design of thermal equilibrium

5.  Interface: Aviation waterproof connector

Pan Tilt

Pan: 360° continuous rotation，tilt: +40°～-45°

Rotation speed: Pan: 0.01°～30°/s, Tilt: 0.01°～15°/s

Positioning accuracy: 0.1°

Advanced movement: 200 preset positions, cruising track, pattern tour and auto scan

Support coordinate query/feedback, angle real-time display and absolute control, zero position correction

Interface

1* RJ45, 10M/100M adaptive (include thermal+HD visible+RS485), 1* AC24V/DC24V

Video format

H.264/H.265, Dual video output

Protocol

TCP/IP、HTTP、DHCP、DNS、DDNS、RTP etc.

Support ONVIF2.4

P/T control protocol: Pelco-P、Pelco-D, Baudrate 2400、4800、9600、19200 optional

Power supply

AC24V/DC24V±10%, 50Hz, 150W, Standard AC220V->AC24V power supply

Environment

1. Operating temperature:-40℃～+65℃

2. Storage temperature:-40℃～+65℃

3. Humidity:<90%

4. Anti-lighting: built-in auto fuse-protected device, power 4000V, signal 2000V

5. Ingress protection: IP66

Weight

≤25kg
